Precision Arbors for Machining

Whether you are engaged in aerospace, medical, automobile, bicycle or other high-precision industries, the pursuit of better precision and more efficient production capacity has always been the goal of our joint efforts. Better weapons allow you to face all kinds of challenges. .


BT / HSK / Capto interface, or output interface ER/side-mounted/face milling...etc.

With a speed increaser to push the tool up to 55000rpm, you will have a stronger production capacity.


BT hydraulic tool holder


Accuracy up to 0.003mm


HSK precision knife holder


BBT double-sided restraint knife holder

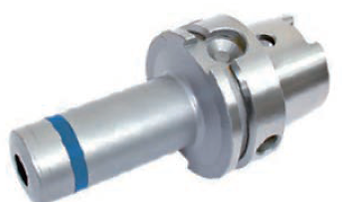

HSK hydraulic tool holder


Accuracy up to 0.003mm

​modular interface design


​Application of various angle heads


Adjustable output ±90° for tilt drilling , milling and tapping


Idcal for milling , drilling , tapping at ±90


Long Seriers for machining at deep position


Offset series for machining in narrow spaces with coolant input diretly from machine spindle and output through the tool at 70 BAR


With coolant input from positioning Pin and oulput through the tool


Ideal for Micromachining in narrow spaces
